When it comes to ECU (Engine Control Unit) tuning, several specialized files help engineers and tuners manipulate and optimize the performance of an engine. The process relies on three important file types: DAMOS files, A2L files, and function sheets. Let's look at each and understand their relationship in the tuning process.

winols damos

Mappack ( Damos / A2L Files / Functions )

Unlock peak engine performance with professional ECU tuning grounded in Mappack technology. A Mappack unlocks the potential of your engine control unit (ECU) by means of detailed Damos or A2L definition files, allowing access to restricted functions. With a clear definition of each map, tuning professionals can make precise changes to important parameters for better performance. This results in a safe, effective, and reliable vehicle calibration. It's the basis for accurate engine control tweaks.

What is the Engine Control Unit (ECU) and Why is it Hard to Tune Directly?

The ECU or Engine Control Unit operates complex software which usually is stored inside a single data file. This file has settings and data maps with thousands of sweeps that controls everything your engine does from fuel injection to ignition.

Getting this raw data file off the ECU is the first step. But the real challenge is understanding it. Think about it like a massive library that only the manufacturer can read. Having no guidance at all while we try to modify this raw data is very challenging and risky.

What Are Damos/A2L Files and How Do They Relate to a Mappack?

To understand the raw data of the ECU, tuners need a key or legend. This is where we use definition files, called Damos or A2L files. They help to decipher the ECU data which is in a raw form. Think of them as the blueprint for the ECU's software.

These files tell tuning software where maps are, what they do, and how to make sense of the raw data. A Mappack uses info from Damos or A2L files.

Is a Damos File the Same as an A2L File Used for a Mappack?

Damos files are older, used for Bosch and other hardware specs. They have information like database about address, calculation factor, and axis. They were commonly used with specific calibration software.

A2L postal mail happens to represent the modern industry standard. They give a detailed ECU data description such as memory addresses, data types, conversion methods, communication settings, etc. Since A2L is a standard, it works on different tuning tools, so today it is the preferred format for Mappack build.

So, What Exactly Defines a Tuning Mappack?

A Mappack can be thought of as a practical tool in tuning software like WinOLS. It is frequently a project file (e.g., .olsx file) or a specification deffile (e.g., .kp). It uses excellent Damos or A2L file information to build the Mappack.

A Mappack is usually a selection of the most important maps for a specific tuning goal, possibly a Stage 1 upgrade. It offers prepared definitions with accurate addresses, scaling, and names. The tuner's manual search time is hugely reduced when using a Mappack. Some Mappacks may be compatible only with particular software or ECU files.

Where Does the Data Used to Build a Mappack Originate From?

The Damos and A2L files which are most suited for a Mappack are those created by the ECU and vehicle manufacturers. They are made while the engine is being developed and tuned.

However, this official data is highly confidential. See, manufacturers treat this data like their source code which they don't publish or sell to the aftermarket tuners. They are valuable intellectual property.

Why is Official Mappack Data So Hard to Get?

Manufacturers hold on to paperwork very tight because they contain the exact engineering information of how their engine works. Letting people use it would share years of R&D secrets.

That means that aftermarket tuners generally cannot have these official and guaranteed-to-be-accurate files for a perfect Mappack through legal means. Typically, access is off-limits to internal teams and close partners under strict agreements.

What are the Unofficial Sources for Mappack Data?

So, since the official files are not available, the definition files in use in many aftermarket Mappacks come from the two main unofficial routes. Now, sometimes files leak into the network from the manufacturer or the supplier. But it is not a legal source and hence not reliable either.

Specialists often make definition files by reverse engineering. This involves close examination of the ECU's raw binary codes for finding maps and detecting their addresses, size, operation and most importantly how to convert its raw data into physical units. It's a very complex and time-consuming task.

What are the Risks of Using an Inaccurate Mappack?

The Mappack's accuracy is largely influenced by the source of the definition file. Files from leaks or reverse engineering might contain bugs. Errors can include wrong map usage, wrong memory address, wrong scale, and incompleteness.

Using an inaccurate Mappack during tuning is dangerous. Your engine might behave unpredictably and perform poorly or fail to meet emissions – or suffer severe damage. Accuracy is absolutely critical for safety and reliability.

How Do Software Updates Affect a Mappack?

Another challenge is ECU software versions. Manufacturers often release updates. Even tiny updates can affect the map location in your ECU's memory.

If your software version doesn't match, then a Mappack could also damage your engine or car, even if you didn't buy the software plugin from the company directly. It's important to check that the Mappack matches the exact ECU software.

How Does the Source Affect a Mappack's Reliability?

In the end, how reliable the tune is depends a lot on the Mappack used. Official files offer the highest accuracy. Files that are leaked or reverse-engineered should be double-checked.

As a professional tuner, you either need permission to access high quality, verified definition files or the technical know-how to check and validate Mappack data versus the actual ECU software you are tuning. You can't just have a Mappack file, you need to make sure the file is correct.

What Kind of Detailed Information Does a Mappack Reveal?

If you're mappack is based on a good Damos or A2L file it will unlock a huge amount of detail. It offers easy-to-understand names for maps and parameters, such as "Optimum Engine Torque" instead of a memory address.

It tells you exactly where in memory each piece of data starts. It labels the size of parameters/maps as well as the type of data, be 8-bit, 16-bit. More importantly, it incorporates the formulas for scaling.

Why is Scaling Information Within a Mappack So Important?

Scaling information is vital. These ECUs internally store numbers that don't mean anything and that's what 5X is used for. The Mappack has the formulas that turn raw numbers into a real physical unit that's meaningful to you.

This means the tuner is able to see and adjust values like degrees Celsius for temperature, RPM for engine speed, pressure in Bar, or torque in Nm. If the Mappack scaling isn't correct, everything is rubbish or a lie, and tuning safely is impossible.

What Else Besides Basic Maps Can a Mappack Define?

The data for map axes is defined in addition to location and scaling within a Mappack. This is the memory locations for the axis point, their data type, scale, and unit e.g. for one axis it can be RPM, for another load percent.

Most Mappacks come with descriptions explaining map functions. Some Mappacks that utilize the A2L file format go a step further to define not only communication parameters for their diagnosis tool. They also define the layout of their byte order in memory. Finally, they also define the physical unit which you can leverage.

How Do Tuners Use Software with a Mappack?

A software called WinOLS by EVC is a popular and professional software that tuners use to work with mappacks. Tuners need software to interact with Mappacks. In the pro space, tuners primarily use WinOLS by EVC.

The software takes in the old ECU file, adds definitions from Mappack (Damos/A2L), before applying those definitions to understand raw data. The Mappack and the software together are a potent combination that provides accurate tuning for an ECU.

What is the Workflow for Tuning with a Mappack?

The process generally starts with the readout of the original software file from the car's ECU using special hardware tools. Then the file is opened in a tuning software like WinOLS to start a project.

The next step is to import the correct Mappack (Damos/A2L file) for the ECU hardware and exact software version. This is critical for accuracy. Using the wrong Mappack will lead to errors.

How Does a Mappack Help Visualize ECU Data?

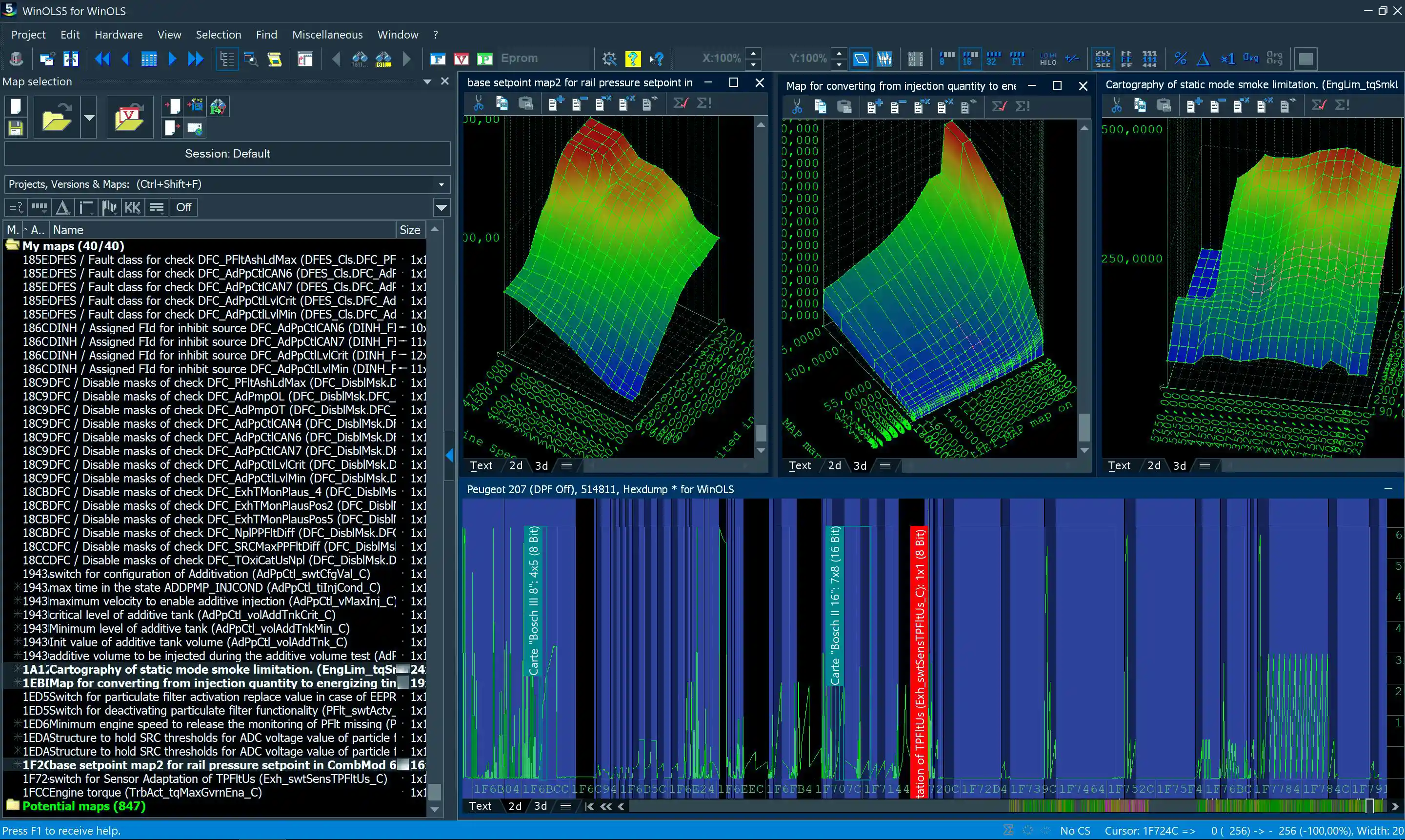

After you import the Mappack, software uses definitions in the Mappack to automatically find and identify the maps in the raw ECU data. It then displays this data visually.

Because instead of looking at lines of code, the tuner will see interactive 2D graphs, 3D surface maps, or clear numerical tables. The software utilizes the Mappack's scaling information to show everything in real-life units making complex data easier to understand.

What Happens After Modifying Parameters Using a Mappack?

After the maps are identified with the Mappack, the tuner can directly select a parameter such as "Ignition Timing" or "Boost Target" and select its value directly in software with proper units.

Whenever you make changes they are saved on a new version usually in the current project. Correcting the checksum is a crucial step before the modified file is written back to the ECU. To make sure the modified file gets accepted by the ECU, the software usually recalculates internal checks. At last, through hardware tools, the tuned file is written back.

What Key Engine Settings Can a Mappack Allow Access To?

A good Mappack provides access to the important engine control functions precisely. Tuners and additional ECU controls can adjust fuel delivery settings, ignition timing advance, turbocharger boost pressure, critical torque limits, etc.

You can also adjust target air-fuel ratios (Lambda) as well as settings for emission systems (like EGR or DPF where appropriate) and other limits like speed or RPM.

Can a Mappack Adjust Fueling and Ignition Precisely?

Yes, absolutely. Mappacks stipulate the maps that control exactly when and how much fuel is injected (Start of Injection, injector duration). They also establish the timing for ignition maps based on engine speed and load.

It uses specific ignition values (less than 10 degrees) so as not to enter 'knock' 'pump', which allows tuning for max combustion performance.

How Does a Mappack Help Control Turbo Boost?

The Mappack reveals the maps that control boost pressure for turbo engines. It includes target boost pressures, some limits, and the controls for the wastegate or variable geometry turbine (VNT).

Tuners can configure the maps to raise boost pressure safely. This mappack will include parameters for all the complex control loops (PID controllers) the ecu uses to control stability and slow response.

Can Torque Limits Be Managed Using a Mappack?

Modern ECUs rely heavily on torque calculations. We need Mappack to interpret that-content and modify it. It defines maps that convert pedal input to requested torque, optimize engine torque, and limit torque to protect the engine and drivetrain.

Make sure you adjust the torque request paths and limiters properly to boost performance without harming performance.

Does a Mappack Define Air-Fuel Ratio Targets?

Yes. The Mappack identifies the maps where the ECU stores its target air-fuel ratios (Lambda values) for different conditions. This includes targets for fuel economy during cruising and richer targets needed under high load to protect components like the turbo or catalyst from overheating.

To optimise performance, economy, emissions and durability, Lambda targets need to be controlled precisely.

Are Limiters and Other Functions Defined in a Mappack?

Besides the main performance maps, Mappacks define several limiters. These include the speed limiter, rev limiter, and limiters based on engine temperature.

Throttle response mapping, variable valve timing controls and sometimes still some sensor calibration maps (e.g. MAF calibration) can additionally be defined.

Why Is Tuning with a Mappack Better Than Guesswork?

Tuning with a precise Mappack is hugely better than trying to tune without one. When tuners don't have definitions, they have to search through the code with no particular reference, compare files or guess at map function and scaling. It's a slow, hard, and very dangerous task for today's ECUs.

A Mappack provides precision. It ensures that maps are identified properly and that data is understood correctly concerning units and scaling. This allows for calculated, safe adjustments.

What are the Dangers of Tuning Without a Proper Mappack?

Doing complex tuning without a Mappack is quite risky. If I mistook the map and applied scaling that is wrong; it could inject dangerous values. This can result in poor performance, failed emissions systems, check engine lights, and even complete engine fails.

It's almost impossible to manually identify modern ECUs anymore. They are very complex and error-prone. Without the guidance a Mappack provides, the risk for expensive damage is much greater.

How Does a Mappack Improve Tuning Safety and Efficiency?

Having a Mappack ensures that the tuner knows exactly what it is that they are changing and its limits. It prevents accidental modification of critical data.

It also makes the tuning process far more efficient. We remove the tedious process of searching for and defining maps so the tuner can concentrate his/her know-how on precisely calibrating what is needed to meet the performance goals reliably.

What Are the Direct Benefits for the Vehicle When Using a Mappack?

When a tuner employs a Mappack, the car owner gains from it. Biggest plus is enhanced engine safety, which minimizes the chance of damage, or tuning being wrong.

The performance gain is fully optimized, because the tuner actually makes a calculated change to reliably achieve the full potential. It mean's tune of the engine is done with precision.

How Does Mappack Tuning Improve Drivability and Reliability?

Mappack-based tuning isn't just about peak power. It smoothens the power delivery throughout the rev range, improves the throttle response, and makes it more daily driveable. The car simply feels better to drive.

More data based tunes are more likely to be more reliable.

The owners can expect the performance to always remain the same and issues to be less compared to tunes developed using guesswork or incomplete data.

Can a Mappack Allow for Truly Custom Tuning?

Yes. Because the Mappack allows the tuner to see how changes will affect the engine, they can custom calibrate accordingly. A Mappack allows for the accounting of specific hardware changes (intake, exhaust, turbo upgrades) and matching of tune to owner.

It gives a result like no other, allowing you to go beyond a generic tune to truly optimize the car for that setup and use.

Why Should Professionalism in Tuning Involve Using a Mappack?

High quality mappacks (based on Damos/A2L files) are characteristic of professional ECU tuning. Engaging in proper software calibration (via proper use of mappack) signifies professionalism.

We truly understand that modern Engines require Data and Engineering, not Guessing. Mappack-based tuning is a reliable, safe and professional approach to optimise today's sophisticated vehicles. It ensures the best outcome for the vehicle and its owner.





Note: We regularly update our database with new Damos files. If you're having trouble locating the Damos/A2L file you need, don't hesitate to reach out to us for assistance. Damos (A2L) files provide comprehensive details on all the maps included in the super map pack, streamlining the process of finding the maps required for tuning. Without these files, finding specific maps can be challenging, which may hinder tuning efforts. Damos files are essential for tuning any ECU properly. You can search our database using vehicle or ECU information, or browse by brand. Please contact us if you do not find what you're looking for!
